Functional Glass
Lighting glass
Lighting glass

  The company can supply high borosilicate glass series, such as H-PZ33, H-PZ36 and H-PZ48, which the thermal expansion coefficient range is (3.3-4.8)×10-6(K-1). This kind of glass has excellent heat resistance, chemical stability, mechanical property and permeability. The products include lamp cup, lamp cover, and gobs, strips & casting blocks for lamp lens. It is widely used in general and special lighting, projection, automotive, astronomy and other industries.

  The supply forms include lamp cup, lamp cover, bar, strips and blocks.

  Lamp cup, lamp cover: Ф(20-180)mm

  Blocks: Max diameter 1200mm

  It also can be customized according to customer requirements, please contact us.



Classification

Brand name

item

unit

H-PZ33

H-PZ36

H-PZ48

Linear thermal   expansion coefficient

10-6/K

3.3

3.6

4.8

Density

g/cm3

2.23

2.24

2.32

Maximum service temperature

Long term 450, short term 500

Water resistance


1level

1level

1level

Acid resistance


1level

1level

1level

Alkali resistance


2level

2level

2level

Environmental   protection feature


Meet the requirements of RoHS

Meet the requirements of RoHS

Meet the requirements of RoHS

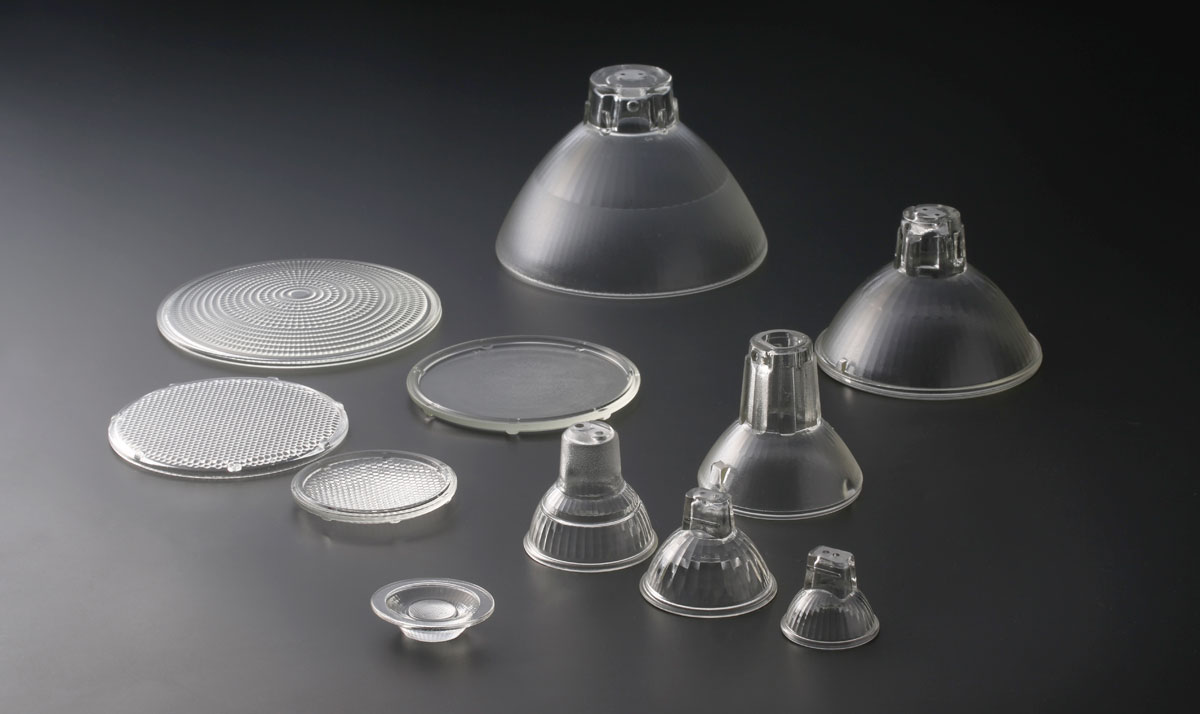

Product pictures
